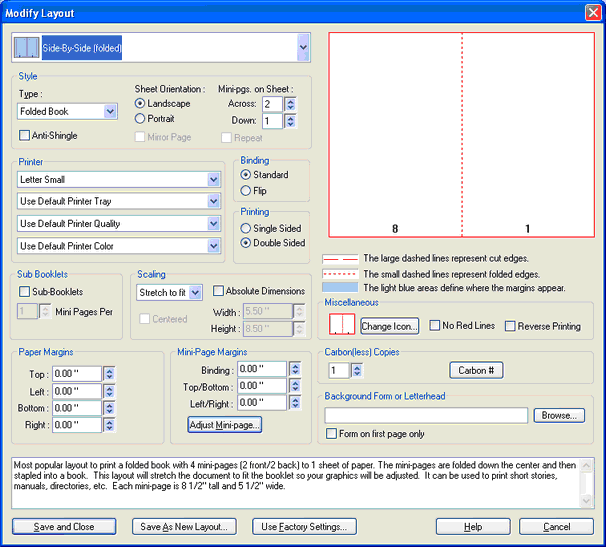

The Modify Layout dialog box allows the user to make permanent changes to any layout format.  It also allows the user to save their changes as a new layout by selecting Save As or to save their changes over an existing layout by clicking done.



To access the Modify Layout dialog go to Layouts on the menu bar, and select Modify Layouts.



clipmodifylayout



Layout: Displays the current layout.
Style:
Booklet Type - Select a booklet style such as Cut book, Folded book, French fold, Planner pages, Poster, Tiled, Tri-fold and Zine.
Anti-Shingle -  In large folded booklets with more than 10 sheets of paper the edges start to creep out in the center until the edge looks like a V.  We call this shingling.  ClickBook can move the page towards the center so you can cut off excess paper without cutting into printed text.
Mini-pgs. on Sheet - Select how many pages to put on a single sheet of paper.
Sheet Orientation -  Select if you want the sheet to print in Portrait or Landscape Orientation.
Repeat - The effect of Repeat depends on the current Layout.  Repeat can be used to print more copies when there aren't enough mini-pages to fill the sheet.   Repeat can also be used, alternatively, to avoid the step of assembling multiple booklets.
Printer (* Settings are layout specific.)
Paper Size - Select the size of paper you want to use. NOTE: Default paper size is specified by the Operating System.
Paper Tray - Select the printer paper tray you wish to use.
Print Quality - Select the print quality you wish to print with.
Print Color - Select between Color and Monochrome.
Binding
Binding Edge - Choose how you want the binding edge
Printing
Print Sides - Select to print on one side or both sides of paper.
Sub Booklets
Sub-Booklets - Rather than folding a whole booklet together, you may wish to print and fold sub-booklets separately, and then bind them together.  Mark the check box to activate sub-booklet printing.  Then set Pages-per to the number of pages you want each sub-booklet to contain.
Scaling
Absolute Dimensions - ClickBook sets the Mini-page dimensions to fill a sheet of paper. You can set the dimensions by turning on Absolute Dimensions.
Width - Specify the width to match a custom page size.
Height - Specify the height to match a custom page size.
Scaling - Choose the type of scaling to use, either One to One, No Scaling, or Stretch to fit.
Margins
Paper Margins - Allows you to change the margins for a sheet of paper.
Mini-Page Margins - Allows you to change the mini-page margins for the current Layout.
Adjust Mini Pages - Allows you to make corrections to the mini page(s) position. Can be used for Front and Back adjustments.
Change Icon - If you are saving a custom layout you can change the icon graphic associated with the layout.
Carbonless Copies - Input the amount of carbonless copies you would like to print for a specific form.
Carbon # - Adjust settings for carbonless copies.
Form - Allows you to add custom forms and/or Letterhead. (Leave blank for no forms to print.)
Form only on first page - Only prints selected form on Page #1
Layout Description - Gives you a brief definition for the selected layout..
Save and Close - Saves any changes made to the current Layout.
Save As New Layout - Opens the Save As dialog box to save the layout with a new name
Use Factory Settings - Reverts all changes back to the original settings.
Help- Launches the help file.
Cancel - Closes the Modify Layouts dialog.





If you set the Booklet Type to Poster (Windows XP, 2000, 2003, Vista, 7 only), you get other options:



Paper Orientation - This lets you choose the orientation of the pages in the poster.
Pages on Poster - This specifies how many pages will be printed per poster.  Across specifies the number of pages going horizontally, and Down specifies the number of pages going vertically.
Poster Margins - The top and left margins specify how far over the poster will begin printing from the upper-left corner of the first piece of paper.  In most cases it makes sense to leave these at 0, unless you are missing part of your poster because of the non-printable area of your printer.
Poster Cropping - This will stretch your document to fit the poster in one direction and crop off the other dimension if the document does not fit exactly.
Scaling (Width/Height) - This is the total width and height of the poster after assembly.
Overlap - This specifies how much overlap in each poster page.  The pages intentionally overlap because most printers cannot print to the edge of the paper so there would be white gaps on the poster.  You should trim off the white non-printable area before taping the poster together.
